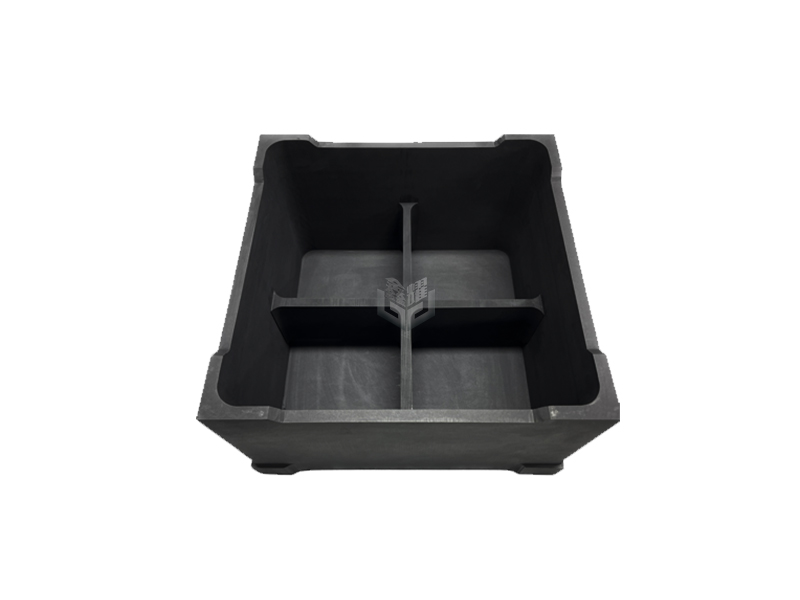

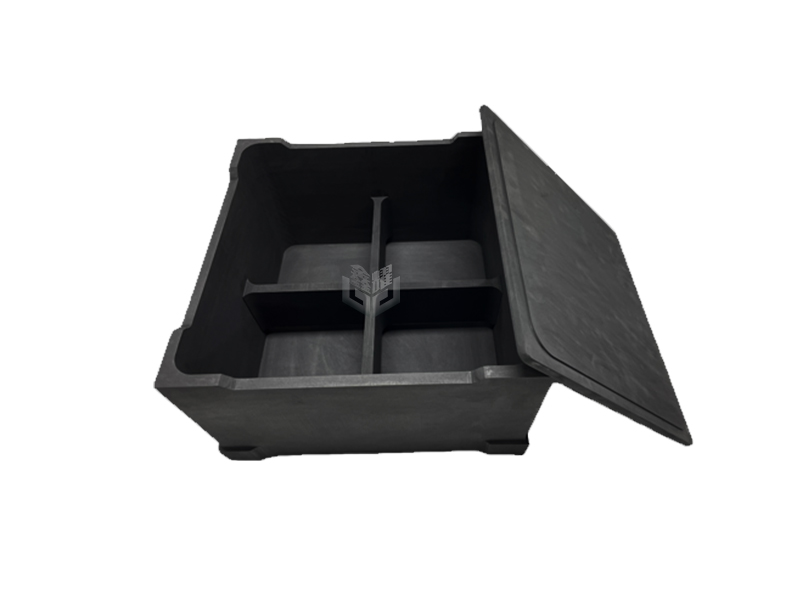

Positive electrode material sagger

Excellent electrical conductivity and low resistance.
Good thermal conductivity and uniform heat dissipation.
Good resistance to thermal shock and corrosion.

Positive electrode material sagger Description

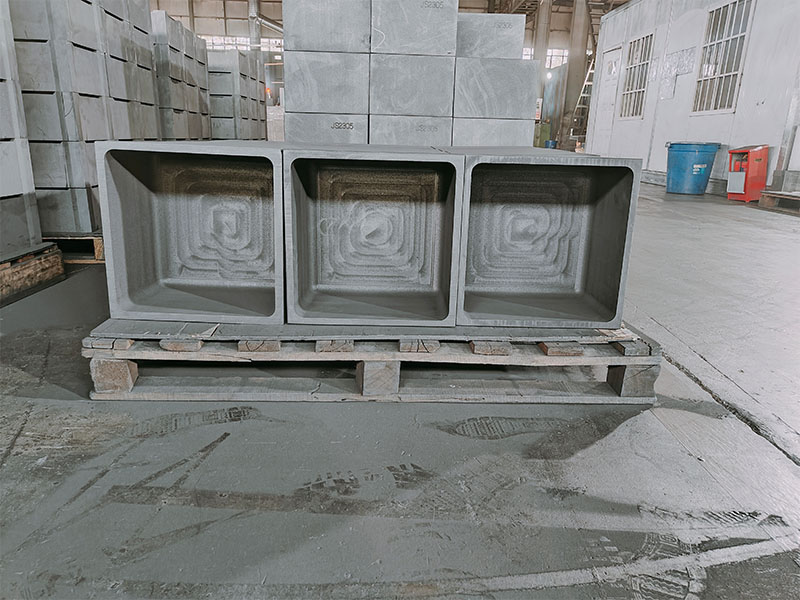

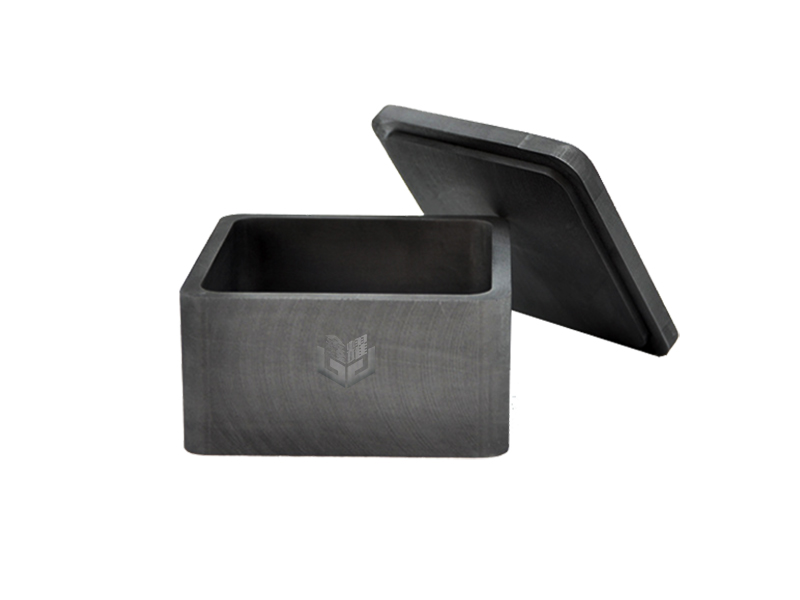

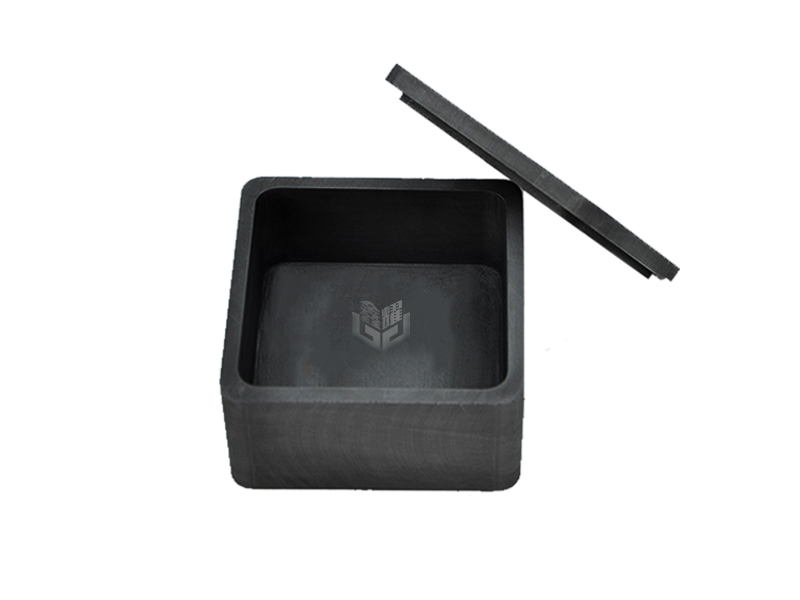

Graphite sagger is a sintered material box. The main raw material is refractory graphite. It has certain thermal conductivity, stability and corrosion resistance. It is used to bake lithium battery cathode materials to ensure the quality of the battery.

Special graphite saggers for lithium battery cathode material lithium iron phosphate sintering, electromagnetic material sintering, ceramic material sintering, etc. have good thermal conductivity and high temperature resistance. During high temperature use, the thermal expansion coefficient is small, and it has certain resistance to rapid heating and rapid cooling. Strain performance. It has strong corrosion resistance to acid and alkaline solutions and has excellent chemical and physical stability.

Positive electrode material sagger Specification

Category	Sintered material	Material	Density	Flexural strength	Graininess	Refractory	Ash content	Compressive strength	Resistivity	Shore hardness	Thermal expansion coefficient 20-600℃
Single layer single grid graphite sagger	Lithium iron phosphate, lithium iron manganese phosphate	High purity	1.8g/cm³	30Mpa	0.02mm	1800°	0.10%	65Mpa	12μΩ.m	——	——
Single layer single grid graphite sagger	Lithium iron phosphate, lithium iron manganese phosphate	Low purity	1.72g/cm³	15Mpa	0.8mm	1800°	0.30%	35Mpa	8.5μΩ.m	——	——
Double layer single compartment graphite sagger	Lithium iron phosphate, lithium iron manganese phosphate	High purity	1.8g/cm³	30Mpa	0.02mm	1800°	0.10%	65Mpa	12μΩ.m	——	——
Double layer single compartment graphite sagger	Lithium iron phosphate, lithium iron manganese phosphate	Low purity	1.72g/cm³	15Mpa	0.8mm	1800°	0.30%	35Mpa	8.5μΩ.m	——	——

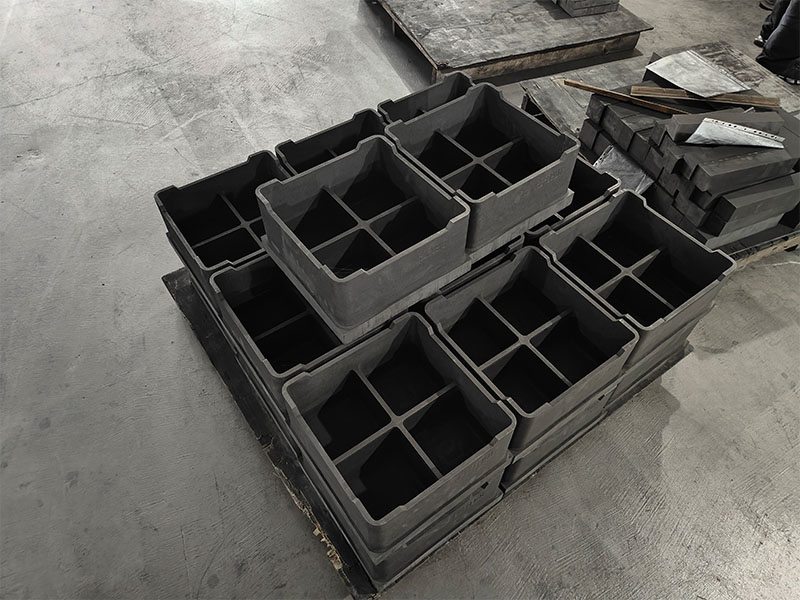

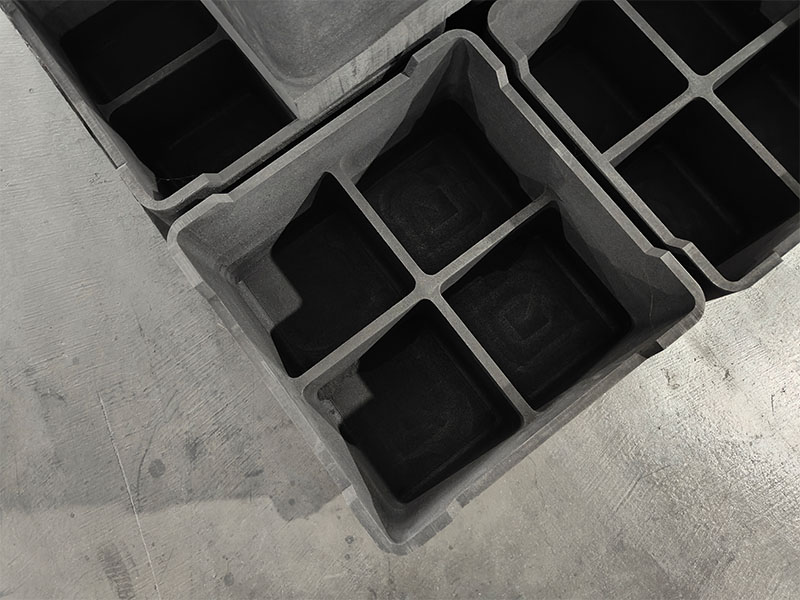

Single layer multi-grid graphite sagger	Lithium iron phosphate, lithium iron manganese phosphate	High purity	1.8g/cm³	30Mpa	0.02mm	1800°	0.10%	65Mpa	12μΩ.m	——	——
Single layer multi-grid graphite sagger	Lithium iron phosphate, lithium iron manganese phosphate	Low purity	1.72g/cm³	15Mpa	0.8mm	1800°	0.30%	35Mpa	8.5μΩ.m	——	——
Double layer multi-grid graphite sagger	Lithium iron phosphate, lithium iron manganese phosphate	High purity	1.8g/cm³	30Mpa	0.02mm	1800°	0.10%	65Mpa	12μΩ.m	——	——
Double layer multi-grid graphite sagger	Lithium iron phosphate, lithium iron manganese phosphate	Low purity	1.72g/cm³	15Mpa	0.8mm	1800°	0.30%	35Mpa	8.5μΩ.m	——	——
