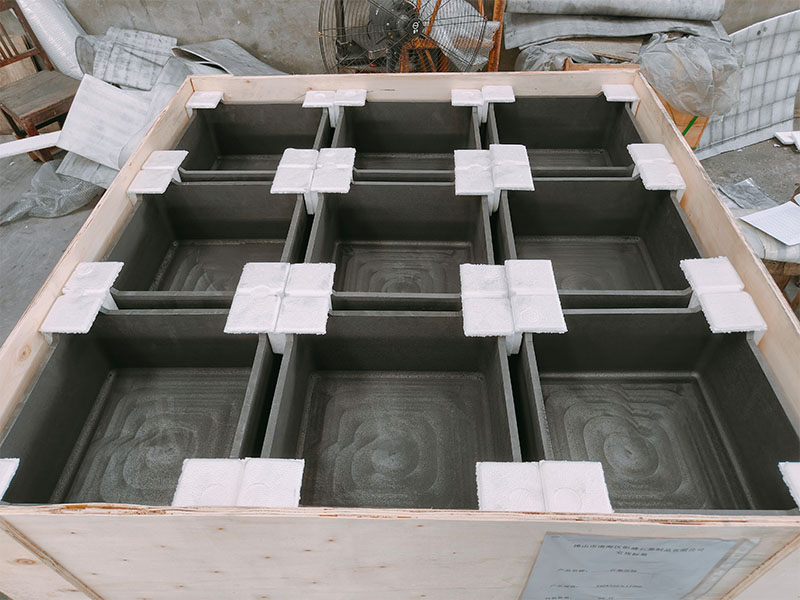

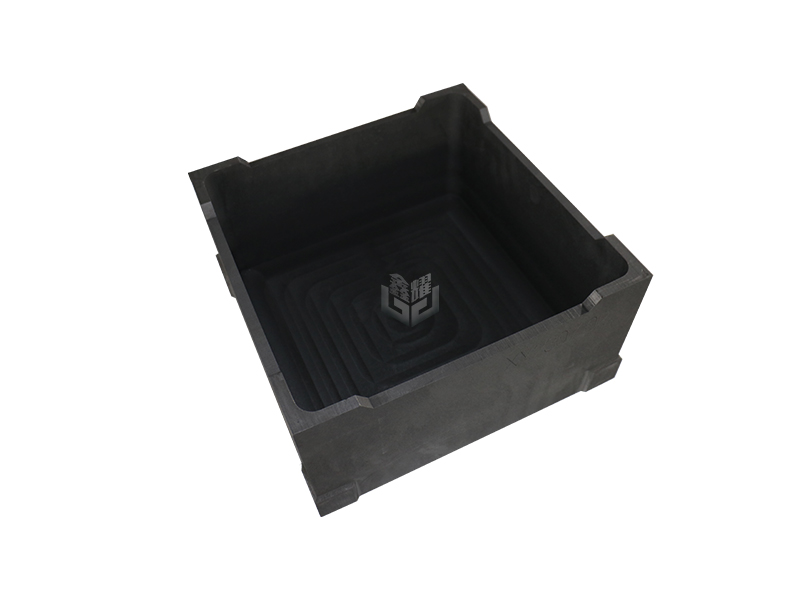

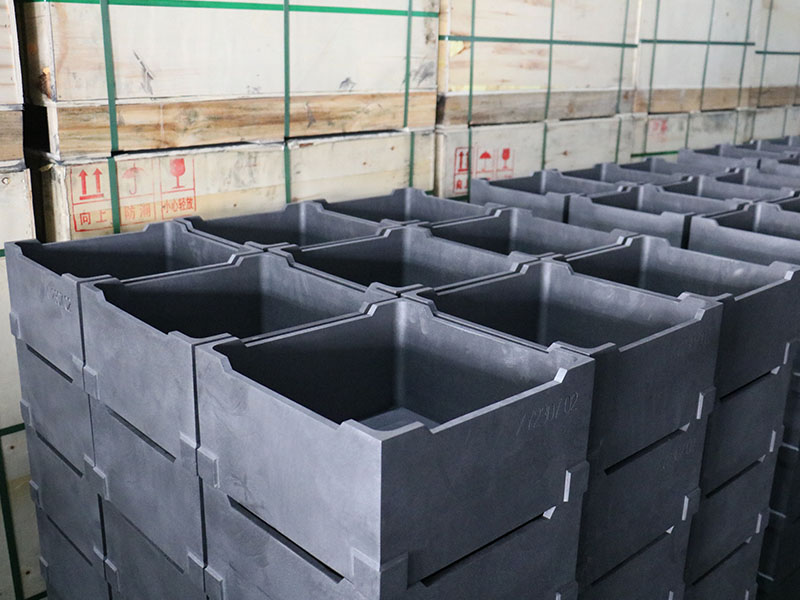

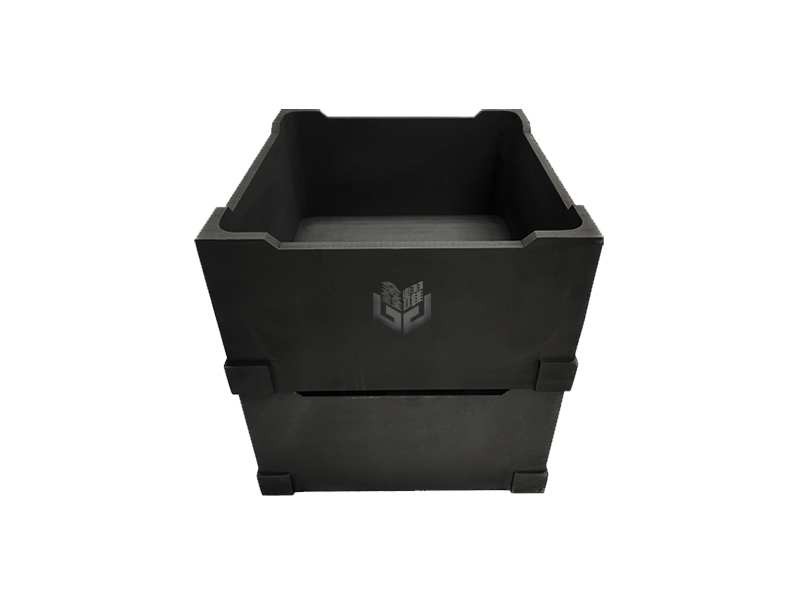

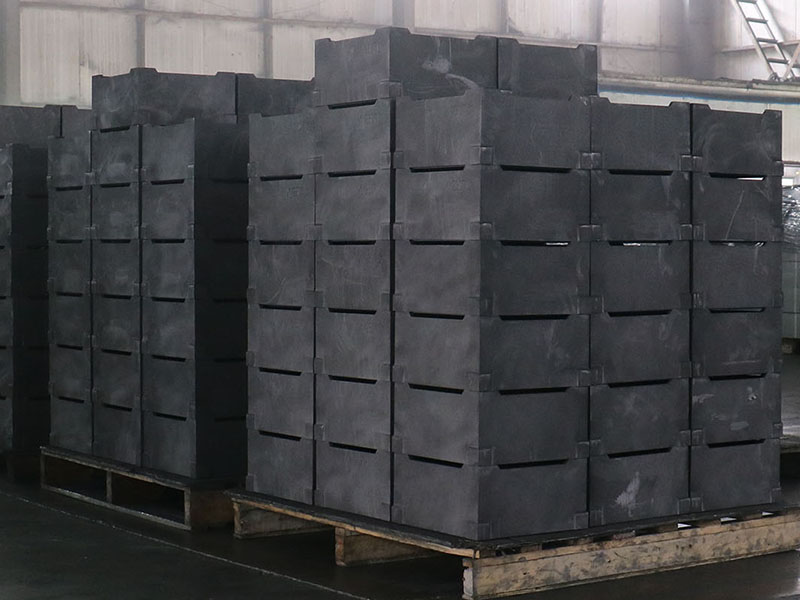

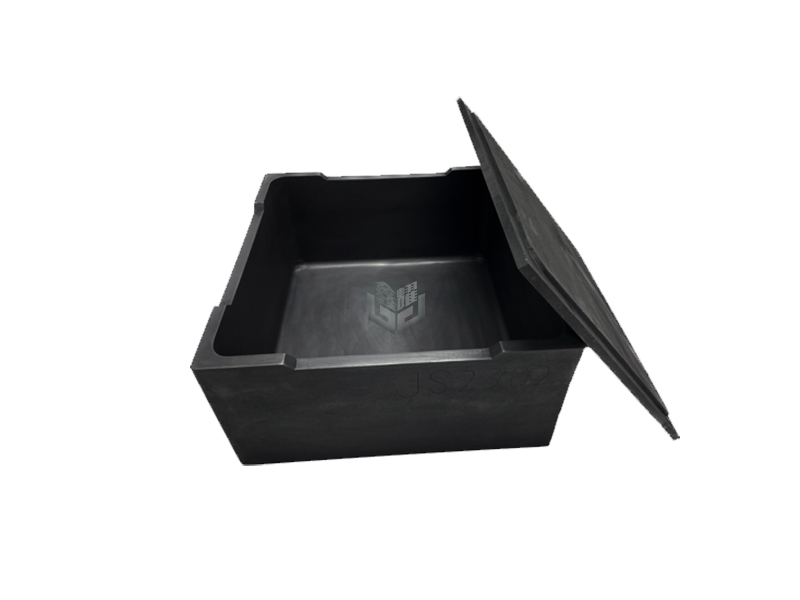

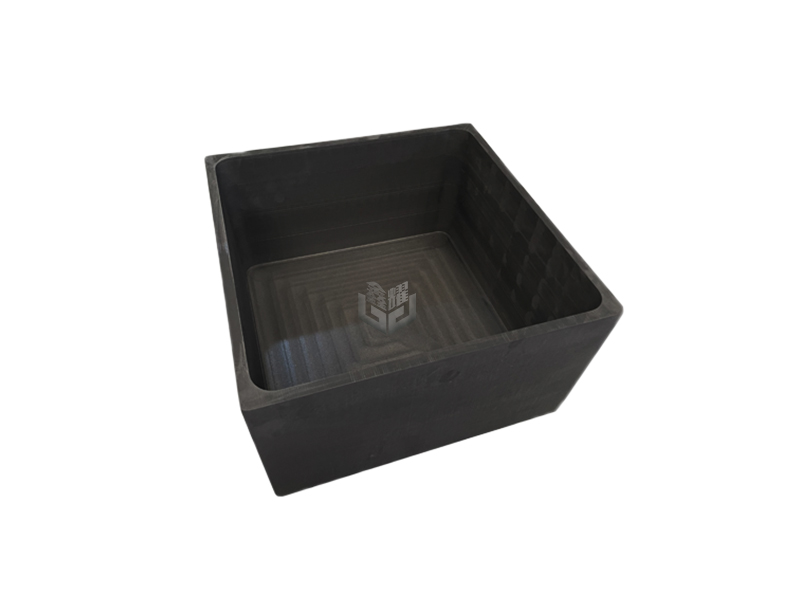

Graphite sagger is a sintered material box. The main raw material is refractory graphite. It has certain thermal conductivity, stability and corrosion resistance. It is used to bake lithium battery negative electrode materials to ensure the quality of the battery.
Special graphite saggers for lithium battery negative electrode materials such as lithium iron phosphate sintering, electromagnetic material sintering, and ceramic material sintering have good thermal conductivity and high temperature resistance. During high-temperature use, the thermal expansion coefficient is small, and it has certain resistance to rapid heating and rapid cooling. Strain performance. It has strong corrosion resistance to acid and alkaline solutions and has excellent chemical and physical stability.
| Category | Sintered material | Material | Density | Flexural strength | Graininess | Refractory | Ash content | Compressive strength | Resistivity | Shore hardness |
Thermal expansion coefficient 20-600℃ |
| Single layer single grid graphite crucible | Natural graphite, artificial graphite | High purity | 1.8g/cm³ | 30Mpa | 0.02mm | 1800° | 0.10% | 65Mpa | 12μΩ.m | ||
| Low purity | 1.72g/cm³ | 15Mpa | 0.8mm | 1800° | 0.30% | 35Mpa | 8.5μΩ.m | ||||
| Single layer single grid graphite crucible | Hard carbon material | High purity | 1.8g/cm³ | 30Mpa | 0.02mm | 1800° | 0.10% | 65Mpa | 12μΩ.m | ||
| Low purity | 1.72g/cm³ | 15Mpa | 0.8mm | 1800° | 0.30% | 35Mpa | 8.5μΩ.m | ||||
| Round graphite crucible | Silicon carbon materials, silicon oxygen materials | High purity | 1.87g/cm³ | 50Mpa | 0.01mm | 2100° | 0.05% | 95Mpa | 10.5μΩ.m | 60HSD | 4.5×10-6/℃ |
